2022-06-24 - Home Server - Remote Access

I have been pretty busy the last couple of days getting my home server configured. The reason I'm converting my old workstation to a server is because I recently purchased a pretty beefy laptop. I've recently found myself in need of more mobile computing power for projects and recreation [as much as I love my Thinkpad X220, it doesn't cut it when I am trying to get some games in with the boys].

This week I did quite a bit of research on software that would allow me to be more self sufficient [in a digital sense, won't be any help if the grid goes down]. I was able to install some software [with some troubleshooting] but have yet to test them enough to conclude whether they are overkill for my purposes. A summary of what I've done

I'll do a quick rundown of all these points.

Hypervisor

A hypervisor , from my understanding, is the software that hosts and manages the guest OSs [guest OS is the fancy way of saying virtual machine/container/etc]. There are Type 1 and Type 2 hypervisors. Type 2 is software like Virtual Box that run on top of another OS. For example, you have Windows installed and would like to try out Linux. You can install VirtualBox ON Windows and install Linux within VirtualBox. The point is the Virtualbox has to go through Windows to interact with the bare metal. A Type 1 hypervisor IS the OS that is running without other software between it and the bare metal. That's why Type 1 hypervisors are sometimes called bare metal hypervisors. The benefits of a Type 1 hypervisor is less overhead supporting the host OS as the software is typically extremely lightweight.

I settled on using Proxmox which is a bare metal hypervisor. This is so I can stage and deploy a good number of containers and VMs without being throttled by the host OS. Additionally, Proxmox is an open-source project which is always a plus [pretty close to a must in my book].

Storage

My old tower had two 512 GB SSDs for the main partitions for both my Linux [which was my daily driver during the pandemic] and Windows [which was basically just for games] install. It also had a 1TB HDD which was used for storage on my Linux install.

Because I want to implement a self-hosted cloud storage solution and/or a media server, I wanted not only to increase the capacity, but also wanted to implement some redundancy in case of a drive failure. So I went out and got myself two more 4TB HDDs. I actually 3d printed two hard drive caddies for my case that I found on Thingiverse. I had another two 2.5 inch drive caddies that where meant for a different case but I just secured them where I could fit them with some zip ties.

So storage in total currently consists of two 512 GB SSDs - one that will be used as a boot partition for my hypervisor and the other will be used as a cache, scratch, or boot partition for the guest OSs - two 4TB HDDs - which will be configured to be a single 4TB mirrored volume for data storage [basically this means the data will be written twice, once on each drive, to ensure that failure of one drive wont lead to any data loss] - and one 1TB HDD - which will just be used for slow, low priority data [no redundancy, no speed, kinda the odd one out].

I implemented the redundancy listed above using ZFS. ZFS is a filesystem which allows for the disks to be collected into storage pools which then can be divided cleanly into distinct sets of data. I find myself always returning to this video by Linda Kateley that explains the system extremely clearly.

Here are the list of commands I used to create the configuration mentioned above.

                  zpool create fastpool /dev/sda
                  zpool create safepool mirror /dev/sdb /dev/sdc
                  zpool create badpool /dev/sdd

I created three pools, one called fastpool - which is the other SSD that isn't my boot drive for Proxmox - another called safepool - which is the mirrored 4TB storage pool - and badpool - which is the one that is neither fast nor redundant.

Installed Operating Systems

I fired up two guest operating systems to get myself started. One is an Arch Linux installation that copies my dot files from my old workstation. This just means that my configuration - window manager, terminal emulator, keybindings, etc - are transferred from my old daily driver. The other is a instance of Open Media Vault where I'll be storing my data [media server data?].

For the workstation install I downloaded the Arch Linux ISO and uploaded it to homeserv through the Proxmox web gui [which is reached on port 8006 by default]. I chose to make this a container because they are a little more lightweight and I don't plan on doing any intense computing on it. I'll have to delve deeper into the significant difference between VM and CT are in the future.

I'll give the details on the OpenMediaVault installation in a later post because there are some bugs in the installer that required some interesting workarounds [and this post is 300000 lines long and a day late sooooo.…].

I'll try to write up some guides this weekend to document the entire process while its still fresh in my mind.

Finally_Creating_a_Homelab

2022-06-16 - Home Lab - Administration

I am currently in the process of setting up my home lab and am using my old computer as my new server. The plan is to make an environment where I can mess with all things networking and delve into self hosting [the more in my control, the less I can blame anyone else when everything explodes].

In addition to configuring and researching the new server [or old server depending on how you look at it], I've got some other projects brewing at the moment. I've been experimenting with creating a remote computing workspace that I can access from outside my network. I am also resurrecting my 3d printer that has been idle for about a year. I'll go into my setup and the modifications I've made to the stock Ender 3 Pro that I have.

Also here is something that I made today.

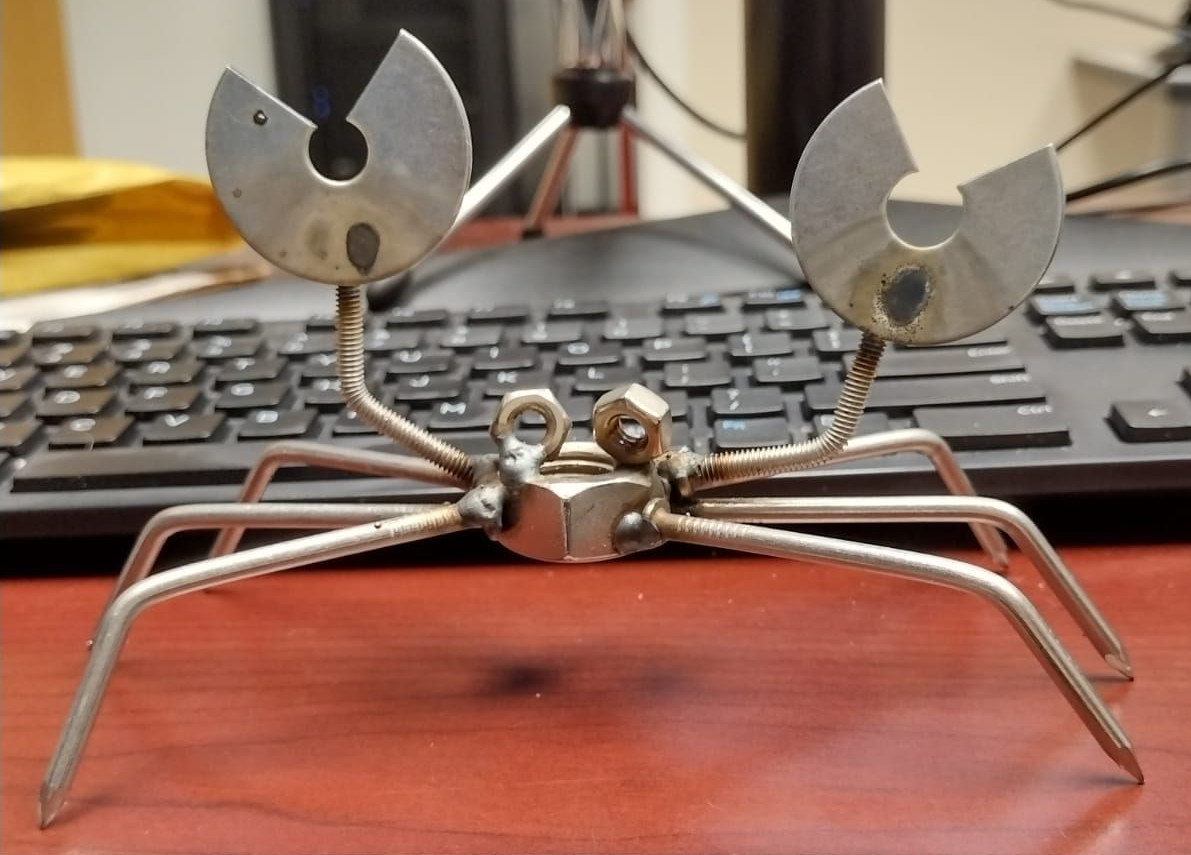

Welded Crab
Welded Crab

I don't want to give to much info away but long story short I had a class on welding today where I made this little crab. I've never welded before today and it was pretty cool. Defiantly a lot more to explore and learn on that front.

Hope that holds you over till Monday!
