Epoxy transducer

TX:

Driven directly through the epoxed transducer desoldered from the hc-sr04

  • Amplitude: 12Vpp
  • Frequency: 58kHz
  • Number of cycles in burst: 3
  • Frequency of burst: 30Hz

RX:

The signal from the other desoldered transducer Amplified by 100 with two inverting offset amplifiers

Results

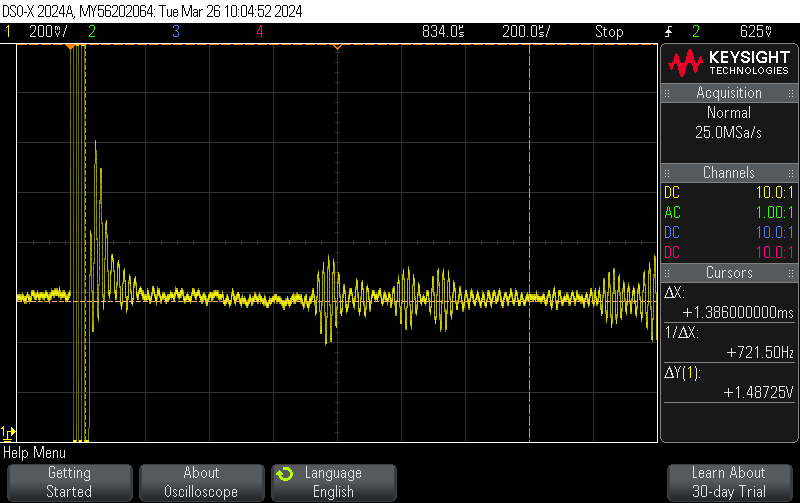

Top of bucket

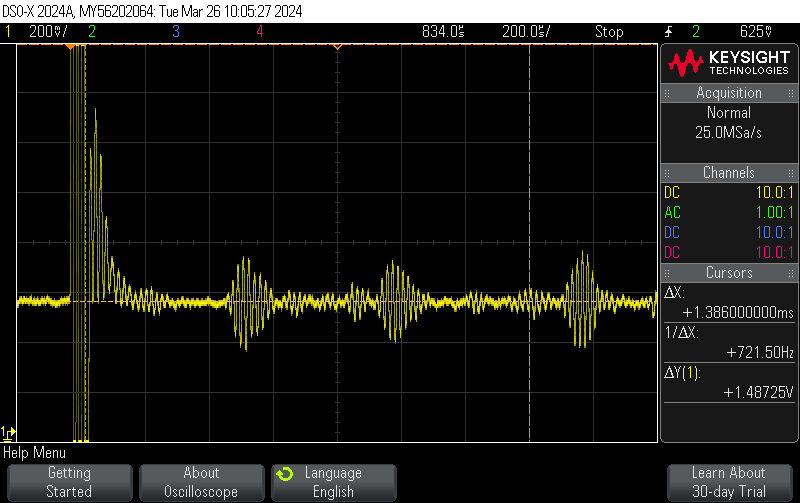

About 175mm into bucket

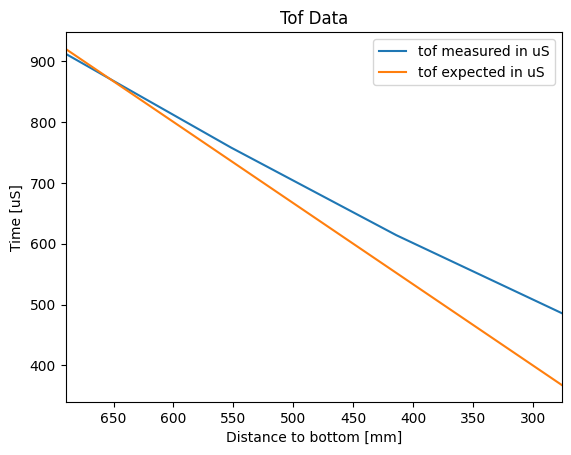

Script Plot

The diverging at the end might be me not being able to reach the bottom of the bucket so good.
